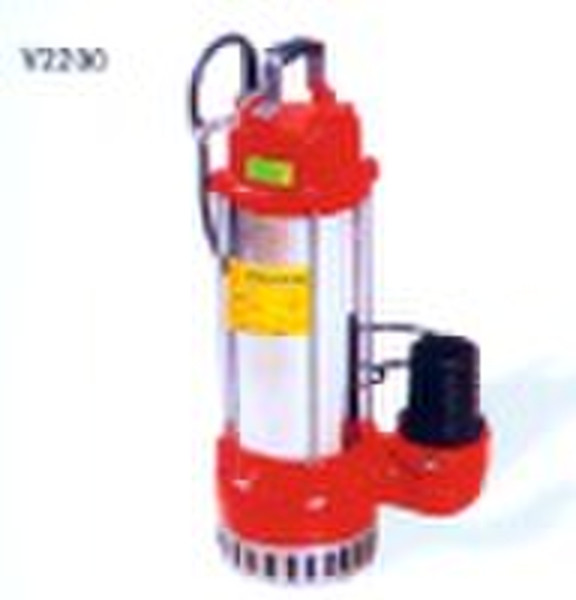

Stainless Steel Sewage Pump

Functions and features: Thiswater pumpseries, a branch of single-phase and three phase drainage pumps, will be your ideal drainage helper. The letter "V" which substitutes for the letter "WQ" indicates the distinct design of the filter and the broadness of the high efficient area. It can work safely and efficiently at high flux with the feature of complete heads. The design is designed to a wide tunnel which helps to convey the long fiber liquid or the solid whose diameter is no bigger than 35mm (need to change its filter net). The selection of bottom suction structure, stainless steel and special cast iron made the pump have capabilities of complete drain and high resistance of abrasion and corrosion. The float switch can automatically control on and off with the change of the liquor level. The protector in the motor can automatically cut off the power when it overheated or overcurrented, thus guarantee the security and reliability of pump's run even in the atrocious environment. The power is from 0.18kW to 2.2kW. Condition of usage: 1. The maximum deep it is allowed in water is 5m from its center of impeller 2. The trans medium's temperature shouldn't be higher than 40°C 3. Trans medium's PH: 4 10 4. Kinematics viscosity of the trans mediums: 7 x 10-7 23 x 10-6m2/s 5. Density of the trans medium limit: 1,200kg/cbm ModelPower (kw)Outlet diameter(mm)Voltage (V/HZ)Max.flow(l/min)Max.head(m)Max.diameter of(mm)G.W. (KG)Dimension (cm)V180F0.1840,32,25220/501337158.518.5x18.0x36.5V250F0.2540,32,25220/501507.5159.518.5x18.0x38.5V450F0.4550220/502008.52518.526.0x19.5x50.0V750F0.7550220/50300122519.526.0x19.5x54.0V1100F1.150220/5033393523.527.5x22.5x56.0V15001.540220/50270221026.559.0x35.0x25.0V22002.280220/5070017203559.0x35.0x25.0Codel "F" means pump assembled with float switch
